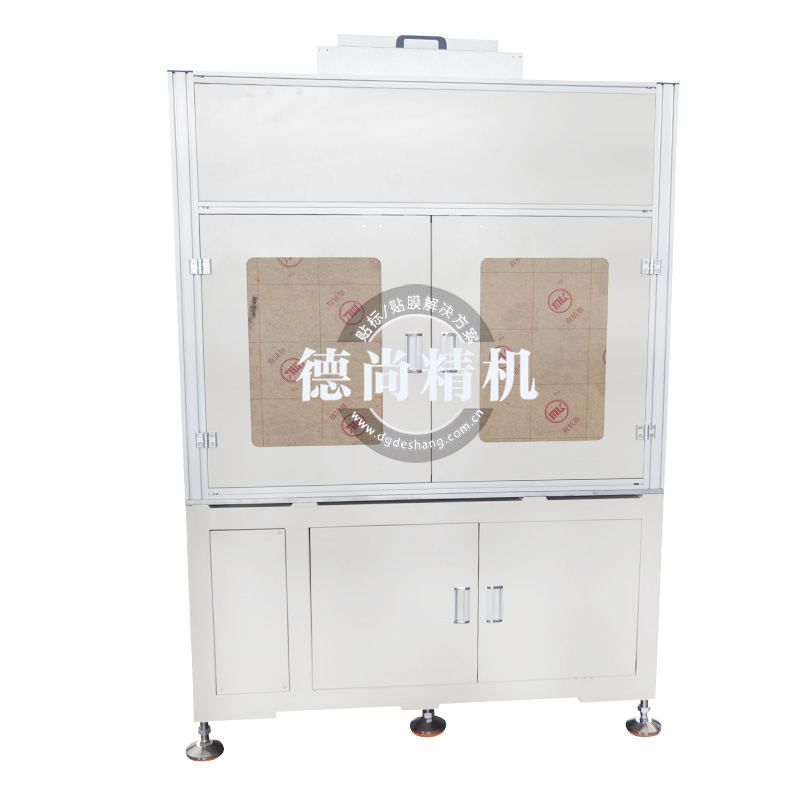

DS-1011S CCD Visual Film Laminating Applicator Machine
CCD Visual Laminating Machine
The DS-1011S CCD Visual Film Laminating Applicator Machine uses a four-axis robot to grasp and take pictures of the protective film. Two cameras take pictures of the product and the protective film for identification. After the deviation is corrected by the visual system, the roll-pasting process is achieved.
Product Overview
Product Features
- 15-inch large-sized attachment
- Four-axis robot + 2 sets of visual alignment system complete the automatic film attachment process
- Using the roll-adhesive method, it features high attachment accuracy, no bubbles, no marks, and no scratches.
Some application examples
Working principle
The equipment uses a four-axis robot to grasp and take pictures of the protective film. Two cameras take pictures of the product and the protective film for identification. After the deviation is corrected by the visual system, the roll-pasting process is achieved.
Operation process
Manually place the product, start the equipment - The robot moves to take the film and takes photos to identify the protective film - The product moves to the film application position through the X-axis module - The camera on the machine takes photos to identify the product, and after being corrected by the visual positioning deviation system, it performs precise roll-type film application - The robot and the product are reset - The already film-applied product is manually removed.
Scope of Application
Applicable labels/membranes: PE membrane, PVC membrane, PET membrane, OPP membrane, UV membrane, FPC membrane, PO membrane, etc.
Applicable products: Flat product laminating.
Application industries: Widely used in industries such as automobiles, mobile phones, electronics, hardware, plastics, medicine, etc.

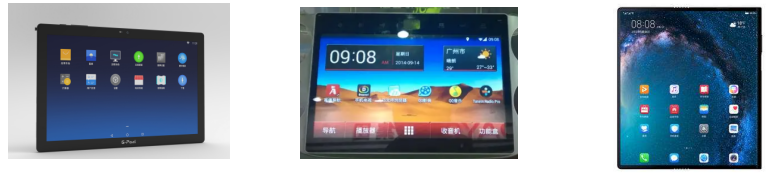

Application examples: Laminating for car display screens, tablet computers, car rearview mirrors, etc.
Technical Parameters
The following are standard specifications; customized services are available for other special requirements and functions.
|
Item |
Specification |
|
Applicable label/film size |
Label width 300mm (customizable according to customer products) |
|
Lamination accuracy (mm) |
±0.1 mm |
|
Lamination speed (pcs/h) |
300–500 pcs/h |
|
Voltage (V) |
220 V |
|
Power (W) |
1250 W |
|
Air pressure (MPa) |
0.4–0.6 MPa |
