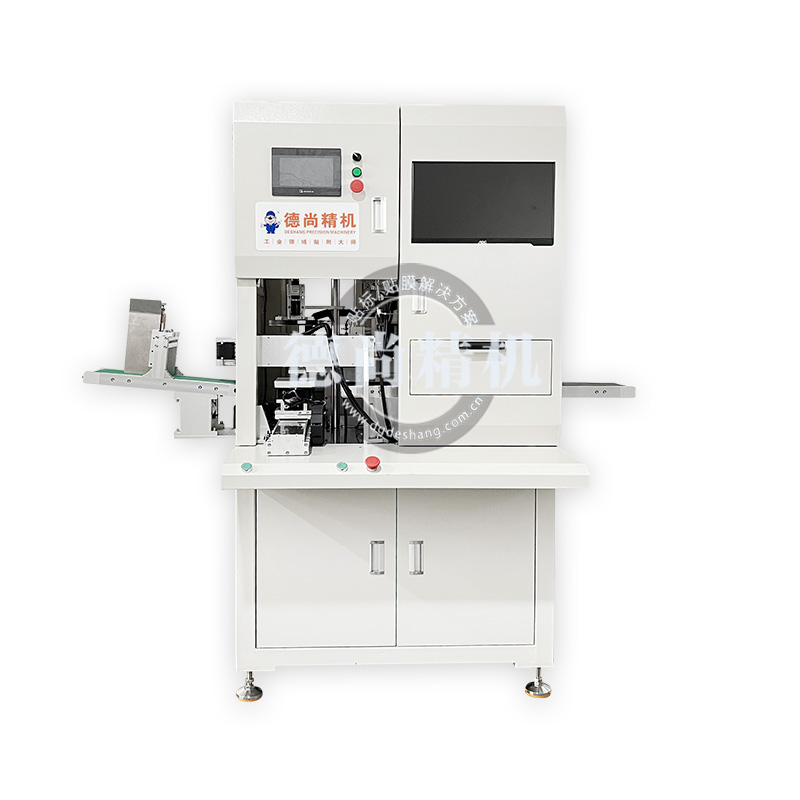

DS-1205 Automatic CCD Visual Film Laminating Machine
CCD Visual Laminating Machine
This fully automatic laminating machine adopts dual‑CCD visual positioning and roller laminating technology. It automatically feeds, positions, laminates and unloads flat products such as mobile screens, glass, panels and magnetic sheets with PE/PET films and double‑sided tapes. With ±0.1mm high precision and 1000‑1500pcs/h efficiency, it features high compatibility and stable performance.
Product Overview
Product Features
High compatibility / Roller-type film laminating / Visual positioning for products and films / High-precision lamination / Fully automatic film laminating / Improved efficiency
Some application examples
Partial Product Application Examples
Magnetic sheet, Panel, Mobile phone screen, Glass
Working Principle
The feeding bin adopts a stacked paging mechanism for automatic feeding. The manipulator automatically grabs products and protective films. Dual cameras take photos, and the visual system calculates and corrects deviations to realize high-precision roller laminating. The manipulator automatically unloads the laminated products.
Operation Process
Products are transported by a belt, and the manipulator places them on the tooling platform.
The tooling moves under the No.1 camera for photo identification.
Meanwhile, the film-taking manipulator sucks the film above the No.2 camera for photo identification.
The visual system calculates and corrects deviations to realize roller laminating.
After lamination, the product returns to the feeding position, and the linkage manipulator completes synchronous feeding and unloading.
Scope of Application
Applicable labels/films: PE film, PET film, double-sided tape, etc.
Applicable products: Film laminating for flat products.
Application industries: Widely used in mobile phones, panels, glass, magnetic sheets and other industries.
Application examples: Magnetic sheet laminating, mobile phone screen laminating, metal parts laminating.
Technical Parameters
The following are standard model parameters; customized services are available for other special requirements and functions.
|
Item |
Specification |
|
Applicable label/film size |
Label width 100mm×120mm (customizable) |
|
Lamination accuracy (mm) |
±0.1 |
|
Lamination speed (pcs/h) |
1000~1500pcs/h |
|
Voltage (V) |
220V |
|
Power (W) |
750W |
|
Air pressure (Mpa) |
0.4-0.6Mpa |
|
Weight (kg) |
500KG |
|
Overall dimensions (mm) |
1760(L)×1250(W)×2020(H) |
