DS-1402 Automatic Laser Film Cutting Machine
CCD Visual Laminating Machine

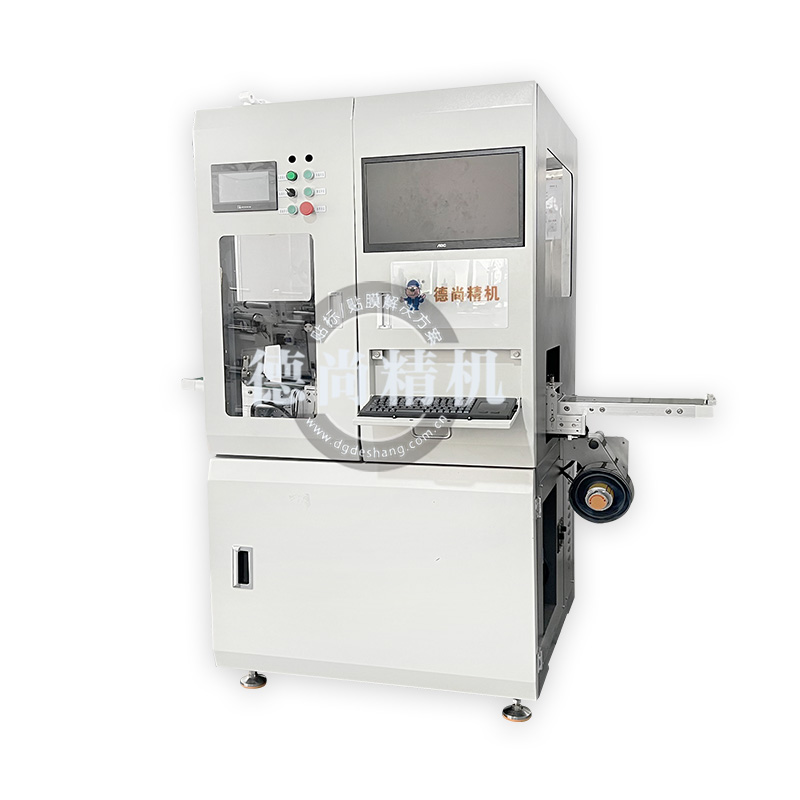

DS-1402 is an automatic laser film cutting machine with high-precision visual positioning. It performs contour laminating and cutting, delivering bubble-free, high-quality results for fragile products, wafers, magnetic sheets, and glass. With ±0.15mm accuracy and 1000–1500pcs/h efficiency, it integrates automatic feeding, laminating, cutting, waste discharge, and unloading, ideal for electronics and mobile phone industries.
Product Overview
Product Features
Equipped with a high-precision visual positioning system, it can laminate and cut films according to product contours. High quality, bubble-free, and high output. It meets 1:1 film lamination requirements and solves difficulties in laminating fragile products.

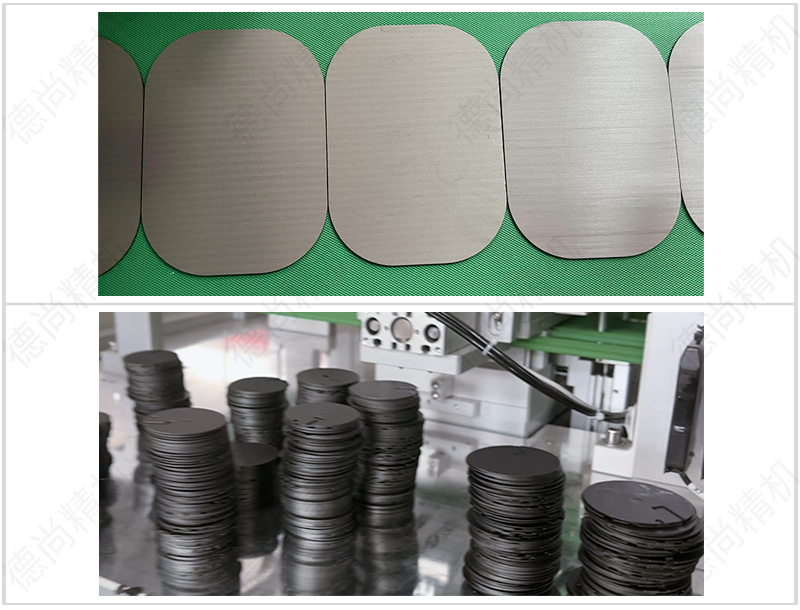

Some application examples
Working Principle
The feeding bin adopts a stacked paging mechanism for automatic feeding. The manipulator places products at the guide film position, and roller lamination ensures bubble-free attachment. The product moves to the laser cutting station; the camera identifies the contour, and the laser cuts along the outline. Automatic waste discharge and unloading are completed.
Operation Process
Stack products in the feeding bin → Start the machine → Automatic film laminating → Automatic cutting → Automatic unloading → Finish.
Scope of Application
· Applicable films: Black film, explosion-proof film, insulating film, etc.
· Applicable products: Magnetic sheets, fragile products, wafers, etc.
· Application industries: Electronics, magnetic sheets, mobile phones, hardware, etc.
· Application examples: Magnetic sheet lamination, glass lamination, screen explosion-proof film, wafer lamination.
Technical Parameters
The following are standard parameters; customization is available for special requirements.
|
Item |
Specification |
|
Applicable film size |
Within 110mm*110mm |
|
Lamination accuracy |
±0.15 mm |
|
Lamination speed |
1000–1500 pcs/h |
|
Voltage |
220V |
|
Power |
1250W |
|
Air pressure |
0.4–0.6 MPa |
|
Weight |
450 kg |
|
Dimensions |
1670(L)×1010(W)×2000(H) mm |
